Mocking Responses in miniApps

Mock Response Manual

This manual explains how to make a miniApp return canned (mock) responses for its web service calls instead of calling the real backend, and how to write the mock definitions that control what gets returned.

Use this to test a flow's behavior for scenarios that are hard to reproduce against a live backend errors, slow responses, edge-case payloads, without needing the real service to cooperate.

Where your mock definitions go

Mock definitions for a miniApp are stored in that miniApp's failoverResponseBody.json configuration file.

The file must contain a mappings array at the top level. Each entry in that array is one mock definition:

{
  "mappings": [
    {
      "name": "optional human-readable label",
      "request": { "method": "GET", "url": "/api/example" },
      "response": { "status": 200, "body": "example response" }
    }
  ]
}

Upload the Mock Definitions JSON file

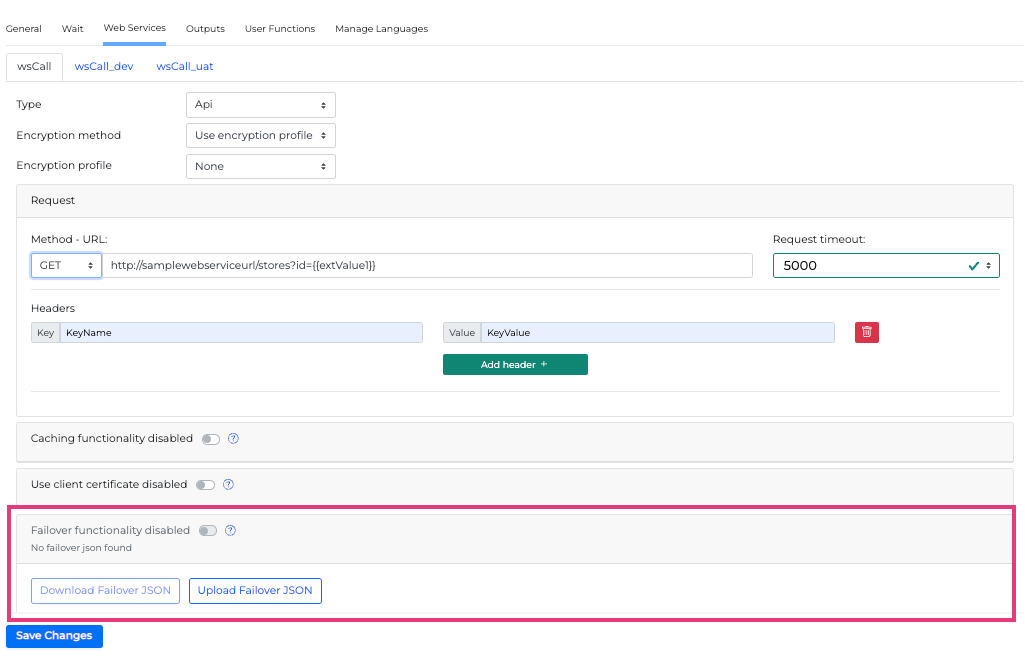

After the Mock Definitions JSON file has been created use the Failover functionality menu to upload the file.

Click the Upload Failover JSON button and add the Mock Definitions JSON file to upload it. You can then enable it or leave it disabled until required.

Turning mocking on

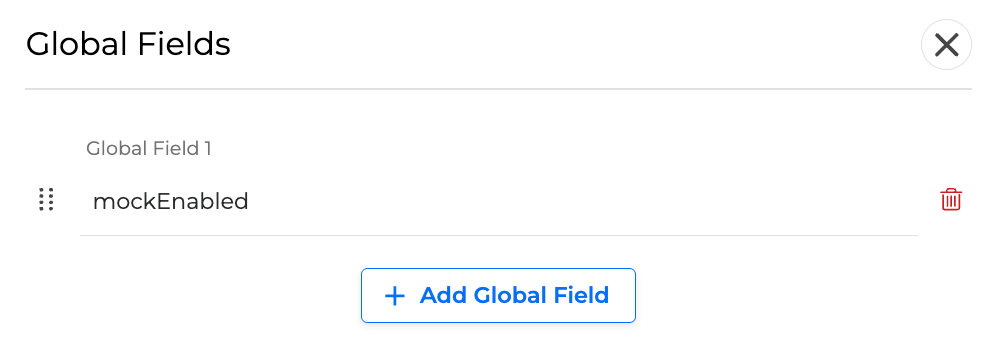

Mocking is controlled by a field called mockEnabled.

How a mock gets picked - first match wins

Your mock definitions are checked in the order they appear in the list, top to bottom. The first one whose request block matches the outgoing call is the one that's used. There's no "closest match" logic, it's strictly first match wins.

{
  "mappings": [
    { "request": { "method": "GET", "url": "/api/users/1" }, "response": { "status": 200, "body": "{\"id\":1}" } },
    { "request": { "method": "GET", "urlPattern": "/api/users/[0-9]+" }, "response": { "status": 200, "body": "{\"id\":0}" } },
    { "request": { "method": "GET" }, "response": { "status": 404, "body": "not found" } }
  ]
}

Describing which requests a mock applies to - the request block

Every field in request is optional. Leaving a field out means "match anything" for that field. If you leave the whole request block out (or empty), that mock matches every call.

URL examples

{
  "request": { "url": "/api/orders?status=open" }
}

Matches only that exact path and query string, nothing more, nothing less.

{
  "request": { "urlPattern": "/api/orders/[0-9]+" }
}

Matches /api/orders/42, /api/orders/1001, etc. It does not match /api/orders/42/items, because the pattern must match the whole path, for that you'd write /api/orders/[0-9]+.*.

Header rules

headers only constrains the headers you list, any other header the request sends, that you didn't mention, is ignored and has no effect on matching. Only list a header when you want to require, forbid, or check its value.

Each header you list under headers needs exactly one of these rules:

Things to keep in mind:

• equalTo, contains, matches, and doesNotMatch all require the header to actually be present, if the header is missing from the request, the mock won't match, even though the value was technically never checked. absent: true is the only rule that matches when the header is missing; it's how you say "this header must not be sent."

• A rule with none of the above set never matches anything.

• If a header is sent more than once, only its first value is checked.

{
  "headers": {
    "Authorization": { "equalTo": "Bearer my-token" },
    "Content-Type":  { "contains": "application/json" },
    "X-Correlation-Id": { "matches": "[a-f0-9\\-]{36}" },
    "X-Debug": { "absent": true }
  }
}

Body rules

bodyPatterns is a list of rules; every rule in the list must pass for the mock to match. Each rule uses exactly one of the options below.

Checking the raw request body text

{
  "bodyPatterns": [
    { "contains": "\"type\":\"purchase\"" }
  ]
}

Checking a specific value inside a JSON body - matchesJsonPath

If the request body is JSON, you can target one specific field in it using a JSONPath expression (e.g. $.customer.id for the id field inside a customer object). There are two ways to use it:

a) Just check that a field exists:

{
  "bodyPatterns": [
    { "matchesJsonPath": "$.accountId" }
  ]
}

Matches as long as that field is present in the body (even if its value is empty/null). Fails if the body isn't valid JSON, or the field isn't there.

b) Check the value of that field:

{
  "bodyPatterns": [
    { "matchesJsonPath": { "expression": "$.name", "equalTo": "John" } }
  ]
}

Things to keep in mind:

• Values are compared as text, so a number like 30 in the JSON should be matched with "equalTo": "30", not 30.

• If the field isn't present, the rule only matches when you used "absent": true; otherwise it fails.

• This form has no built-in "field must exist, don't care about its value" option, for that, use the simpler form from (a) instead ("matchesJsonPath": "$.field"). Setting nothing but "absent": false, or leaving out equalTo/matches/contains/absent entirely, will never match, even when the field is present.

• Comparing against a field whose value is itself a nested object or list doesn't work reliably, point the expression at a plain value (text, number, true/false) instead.

• Anything that goes wrong while checking (invalid JSON, invalid expression) is simply treated as "doesn't match" rather than causing an error.

Combining several body rules

{
  "bodyPatterns": [
    { "matchesJsonPath": { "expression": "$.name", "equalTo": "John" } },
    { "matchesJsonPath": { "expression": "$.age", "matches": "[0-9]+" } },
    { "matchesJsonPath": "$.status" }
  ]
}

Describing what to return - the response block

Simulating slow responses / timeouts

If you set fixedDelayMilliseconds:

• The mock waits that long before responding, unless the call's own timeout setting is shorter, in which case the wait is cut short at the timeout.

• If your configured delay is longer than the call's timeout, the wait is cut short and you get back a placeholder failure response (status 0, empty body) instead of your configured response, mirroring what the flow would see from a real call that timed out.

• If the delay is shorter than the timeout, you get your configured response, delivered after the wait.

This is useful for checking that a flow handles a slow or timed-out backend correctly.

Full examples

Simple GET

{
  "request": { "method": "GET", "url": "/api/health" },
  "response": {
    "status": 200,
    "body": "{\"status\":\"ok\"}",
    "headers": { "Content-Type": "application/json" }
  }
}

POST checked by header and JSON field

{
  "name": "create-order-happy-path",
  "request": {
    "method": "POST",
    "url": "/api/orders",
    "headers": {
      "Authorization": { "equalTo": "Bearer test-token" }
    },
    "bodyPatterns": [
      { "matchesJsonPath": { "expression": "$.customerId", "matches": "[0-9]+" } },
      { "matchesJsonPath": "$.items" }
    ]
  },
  "response": {
    "status": 201,
    "body": "{\"orderId\":\"ORD-1001\",\"status\":\"created\"}",
    "headers": { "Content-Type": "application/json" }
  }
}

Simulating a downstream error

{
  "name": "force-500-for-testing",
  "request": {
    "method": "POST",
    "url": "/api/payments",
    "bodyPatterns": [
      { "matchesJsonPath": { "expression": "$.amount", "equalTo": "0" } }
    ]
  },
  "response": {
    "status": 500,
    "body": "{\"error\":\"invalid amount\"}"
  }
}

Simulating latency / a timeout

{
  "request": { "method": "GET", "url": "/api/slow-endpoint" },
  "response": {
    "status": 200,
    "body": "{\"ok\":true}",
    "fixedDelayMilliseconds": 8000
  }
}

If the call's own timeout is set to 5000ms, this mock returns a simulated timeout instead of the 200 response, because 8 seconds is longer than the call would actually wait.

Dynamic URL with a fallback

{
  "mappings": [
    {
      "request": { "method": "GET", "urlPattern": "/api/customers/[0-9]+" },
      "response": { "status": 200, "body": "{\"id\":42,\"name\":\"Jane Doe\"}" }
    },
    {
      "request": { "method": "GET", "urlPattern": "/api/customers/.*" },
      "response": { "status": 404, "body": "{\"error\":\"customer not found\"}" }
    }
  ]
}

A numeric customer ID hits the first mock; anything else (e.g. /api/customers/abc) falls through to the 404 fallback.

Switching scenarios with a header

{
  "mappings": [
    {
      "name": "simulate-unauthorized",
      "request": {
        "url": "/api/profile",
        "headers": { "X-Test-Scenario": { "equalTo": "unauthorized" } }
      },
      "response": { "status": 401, "body": "{\"error\":\"unauthorized\"}" }
    },
    {
      "name": "default-profile",
      "request": { "url": "/api/profile" },
      "response": { "status": 200, "body": "{\"id\":1,\"name\":\"Default User\"}" }
    }
  ]
}

Send an X-Test-Scenario: unauthorized header from the flow to trigger the error mock; otherwise you get the default response.

Common pitfalls

• Patterns must match the whole value, not just part of it. This applies everywhere a regular expression is used, urlPattern, a header's matches/doesNotMatch, a body's matches/doesNotMatch, and a JSON field's matches. /api/users won't match a urlPattern of /api, write /api.* instead.

• url and urlPattern are not a fallback pair. If you set both, only url is checked, urlPattern is never evaluated, even when url fails to match. Use whichever one fits the request; don't rely on the other as a backup.

• JSON field values are compared as text. Match a number like 30 with "equalTo": "30", not 30.

• There's no "field must exist" option in the detailed JSON check. Use the simple form ("matchesJsonPath": "$.field") to check existence; the detailed form (with expression) needs equalTo, matches, contains, or absent: true to do anything.

• A missing or broken mock file means the real backend gets called. It's not treated as "match everything" or "match nothing."

• No match found means a 404 error response with a message describing the request, not a crash. If a mock you expect to fire stops working, check the response body for that message.

• Order matters. Since it's strictly first-match-wins, a broad mock placed too early (e.g. one with no conditions at all) will hide every mock listed after it.
