How to manage batch numbers through CSV
Overview
This document describes how to manage batch numbers through a CSV file. You can efficiently use a CSV file for different operations, such as Create, Update, Attach, Detach, and Delete.
To make changes using the CSV file, you're required to have OWNER role. You also need to respect the configured limits per application.
Authentication
Navigate to the API Authentication to learn more about Authorization Token Endpoint and Authentication process.
Error Codes
Omilia's HTTP response codes can be found on the HTTP Code Responses page.
API Reference
In this section, you will find a comprehensive explanation of managing batch numbers using CSV files. The process consists of three main steps for clear and straightforward execution.
{{baseUrl}} depends on the user's environment which could be the following:
EU1 - https://eu1-m.ocp.ai/integrations
US1 - https://us1-m.ocp.ai/integrations
Step 1: Access the CSV file
The CSV file can be downloaded via the following endpoint:
POST | {{baseUrl}}/api/numbers/csv | Retrieves numbers as a CSV file. |
|---|
The CSV file contains data on numbers structured as follows:
APPLICATION_TAG: [empty]
COUNTRY: US
GROUP_ID: ocp
LOCALE: en-US
MINIAPP_DIAMANT_APP_NAME: miniApps
MINIAPP_GROUP: ocp
MINIAPP_ID: test.surname_test.Numeric.MiniApps.ocp
MINIAPP_NAME: czindros_test
MINIAPP_TYPE: Numeric
NUMBER: (UUID)
PHONE_NUMBER_SET_ID: testSetId
NOTE: [empty]

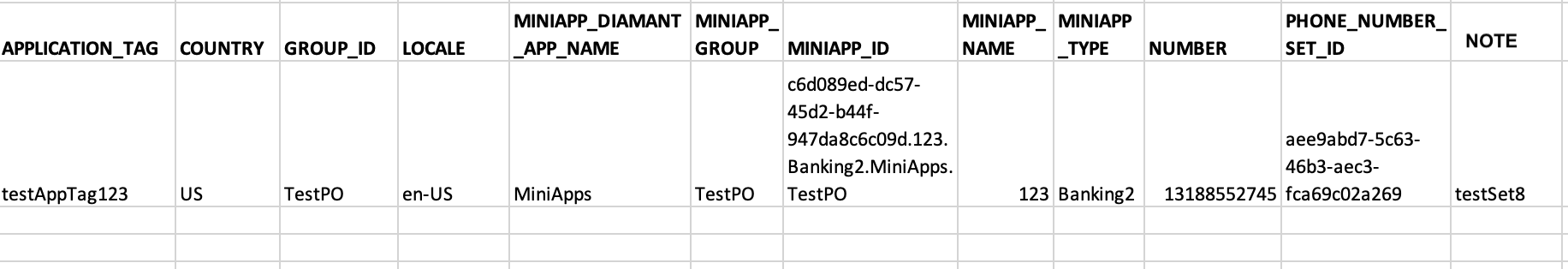

Below you can see a file example:

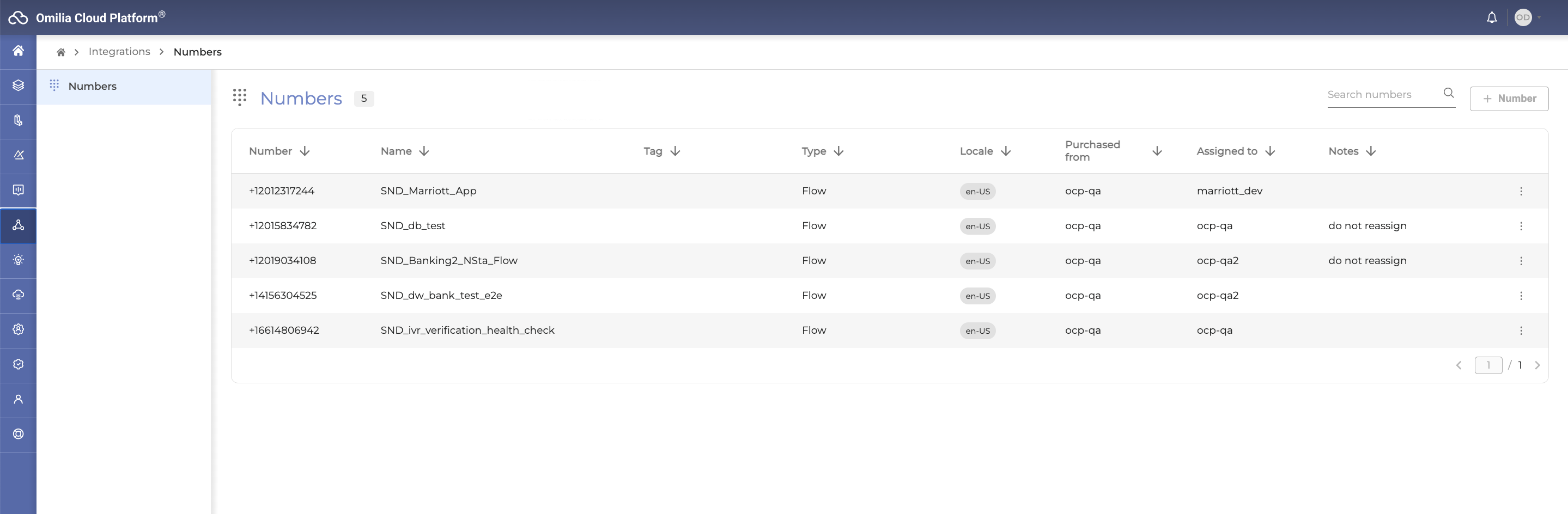

This structure is identical to what you will find in OCP → Integrations -> Numbers.
Step 2: Prepare CSV for operations
For operations via the endpoint below, you are required to add an OPERATION column:
PUT | {{baseUrl}}/api/numbers/csv | Execute operations on numbers using a CSV file. |
|---|
You can execute such operations as Create, Update, Attach, Detach, and Delete. If the operation involves acquiring a new number, ensure you also include a PROVIDER column.
Null or empty fields are ignored during the CSV file check.
Create
The required fields are as follows:
GROUP_ID
NUMBER
OPERATION
PROVIDER
Below you can see a file example for the Create operation:
When using the Create operation, you need to specify the provider. For example, when dealing with numbers related to the Twilio service, simply use twilio as the provider.
Update
The required fields are the following:
NUMBER
MINIAPP_ID
PHONE_NUMBER_SET_ID
APPLICATION_TAG
LOCALE
NOTE
OPERATION

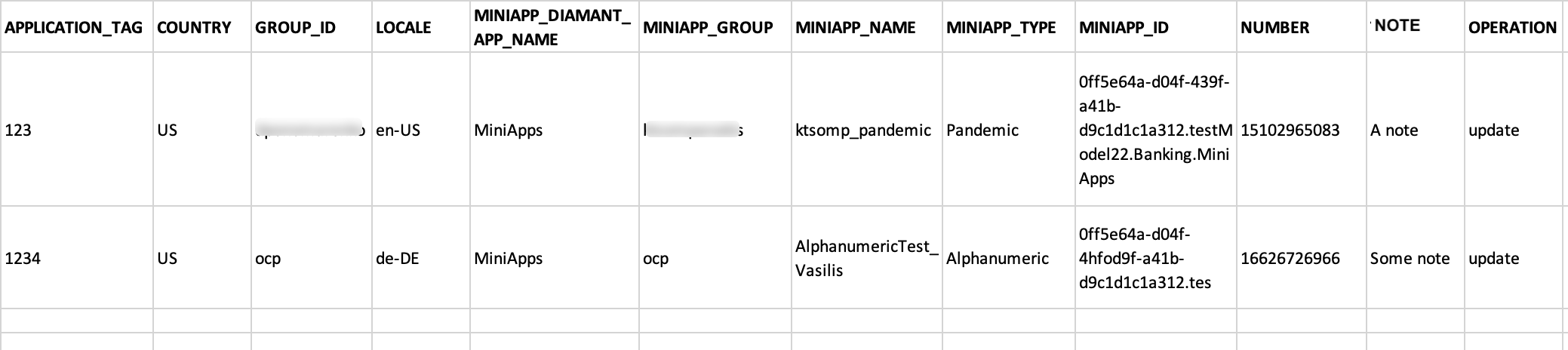

You will find an example below:
When you specify PHONE_NUMBER_SET_ID, the number will be moved to that set, and it should be the same as the number's group.
If a MINIAPP_ID is specified, the number will be attached to that application.
If you want to remove the value in any field, use <NULL>.
Attach
The following fields are necessary:
NUMBER
MINIAPP_ID
OPERATION
LOCALE
Mind that LOCALE and MINIAPP_ID are mandatory fields.

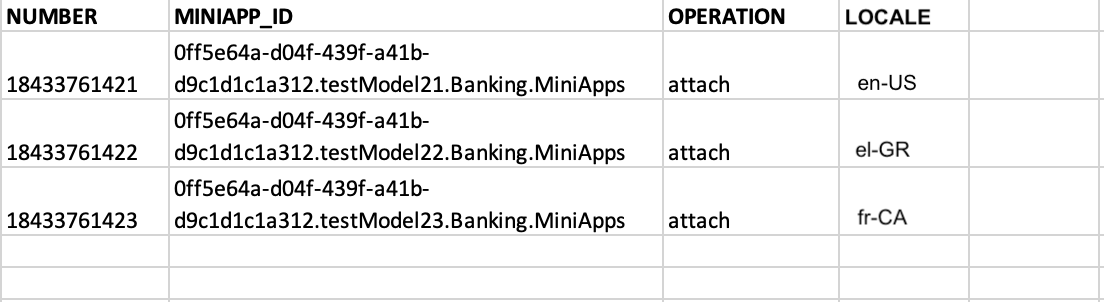

Below you can see an example:
Detach
The required fields are:
NUMBER
OPERATION

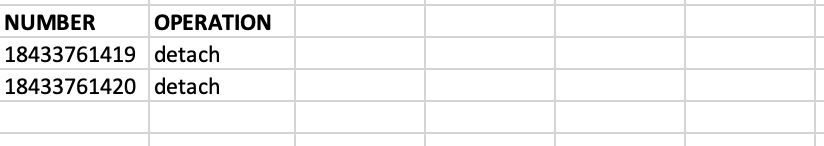

Below you can see a file example for the Detach operation:
Delete
The required fields are:
NUMBER
OPERATION

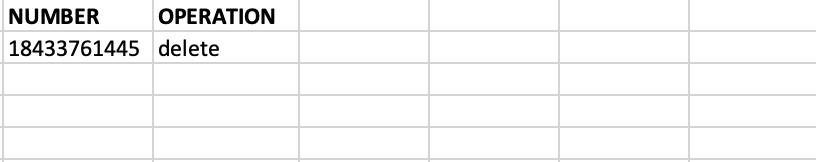

Below you can see a file example for the Delete operation:
Step 3: Execute operations
To make changes using the CSV file, you're required to have OWNER role.
Each type of operation has its limits, which are configured based on the application. Below you can find the default limits for the operations:
Update: 800
Attach: 800
Detach: 100
Delete: 10
Create: 100
The default limits might be reconfigured for specific environments.
To perform operations on multiple numbers from different groups, you must have the appropriate permissions for each number’s group.
For more information on executing operations via CSV, refer to the Batch numbers management through API available on this link.
